Centralized control by PLC touch screen, servo motor controls the length of the paper bag. We can produce all kinds of shopping bags with round ropes, flat rope handles, round rope rewinders, etc. according to your requirements.
Product Description:
Company plant area of 3000m^2, mainly divided into: square bottom paper bag machine production workshop, pointed bottom paper bag machine production workshop, assembly workshop, after-sales workshop and warehouse.
The company consists of R& D Department, production department, technical quality department, comprehensive department, conference room, canteen and so on.
The company has a variety of processing equipment, can fully meet the needs of production, testing.
The company in line with the quality of development management policy, advancing with The Times, is willing to contribute to the cause of environmental protection of the earth.
Product Parameter:
|
Model |
HWFD220T（全） |
HWFD280T（全） |
HWFD330T（全） |
HWFD450T（全） |
HWFD450BT |
HWFD540T（全） |
|
袋筒長度Bag Tube Length（mm） |
190-270 |
270-430 |
270-430 |
285-430 |
420-660 |
420-660 |
|
紙袋長度Bag Length（mm） |
150-250 |
225-370 |
225-370 |
225-370 |
320-600 |
340-580 |
|
紙袋寬度Bag Width（mm） |
120-220 |
200-280 |
220-330 |
250-450 |
250-450 |
250-540 |
|
袋底寬度Bottom Width（mm） |
50-120 |
60-160 |
60-180 |
80-220 |
80-240 |
120-260 |
|
搭邊寬度Side Edge Width（mm） |
20-30 |
25-30 |
25-30 |
30 |
30 |
30-40 |
|
紙張克重Paper Thickness（g/㎡） |
50-130 |
60-160 |
60-160 |
80-160 |
80-160 |
90-160 |
|
制袋速度Bag Making Speed（pcs/min） |
30-180 |
30-160 |
30-120 |
30-100 |
30-100 |
30-80 |
|
手把貼片長度Patch Length（mm） |
95 |
114.3 |
152.4 |
190.8 |
190.8 |
190.8 |
|
紙繩間距Handle Distance（mm） |
45 |
50 |
80 |
95 |
95 |
95 |
|
手把紙繩直徑Rope Diameter（mm） |
?3-5 |
?3-5 |
?3-5 |
?4-6 |
?4-6 |
?4-6 |
|
總功率Power Supply（kw） |
25.5 |
25.5 |
25.5 |
25.5 |
30 |
30 |
|
機(jī)器重量Machine Weight（kgs） |
11000 |
12000 |
13500 |
16000 |
17000 |
18000 |
|
機(jī)器尺寸Machine Dimension（mm） |
10800x5500x3050 |
11500x5600x3100 |
12600X5880X3150 |
12800X6250X3350 |
13500X5300X2550 |
14000X6500X3250 |

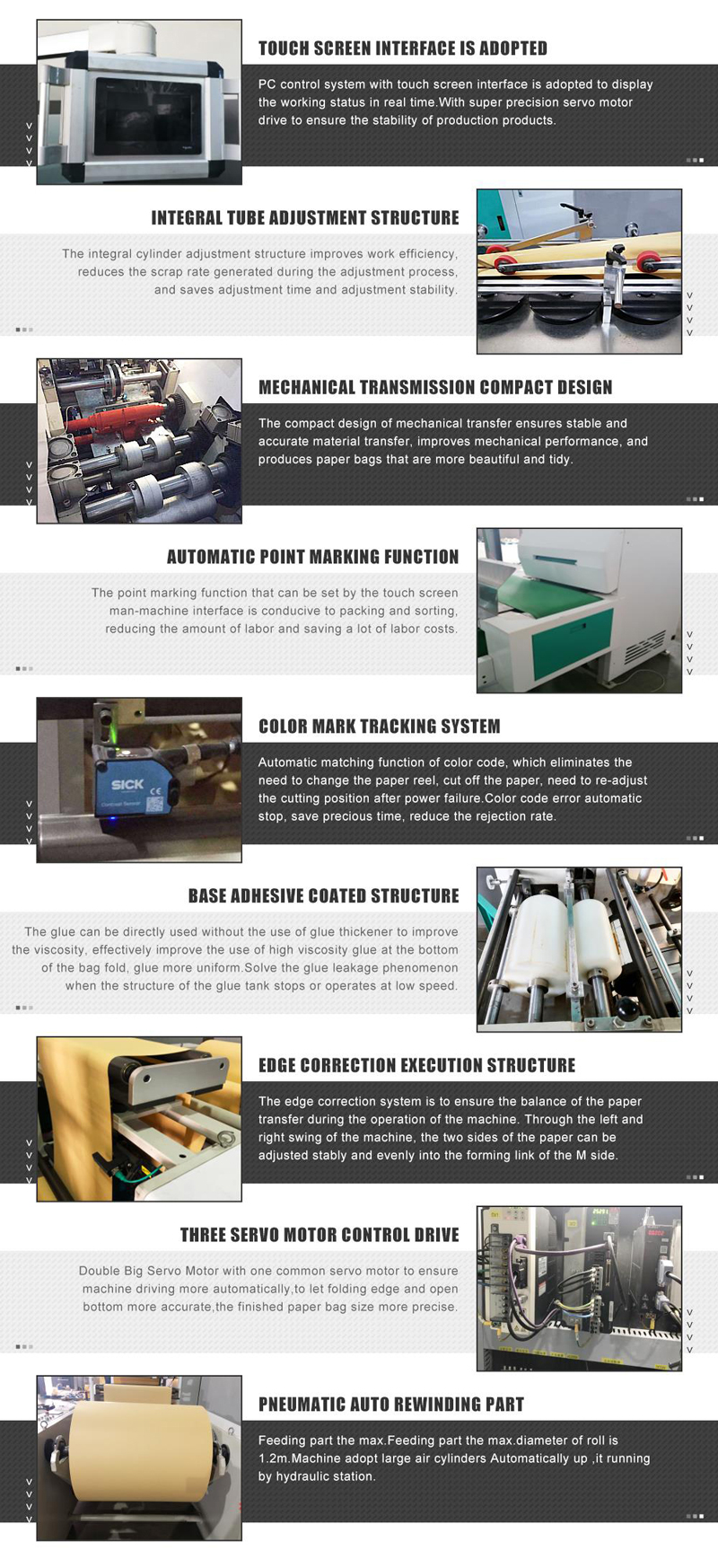

Product Details:

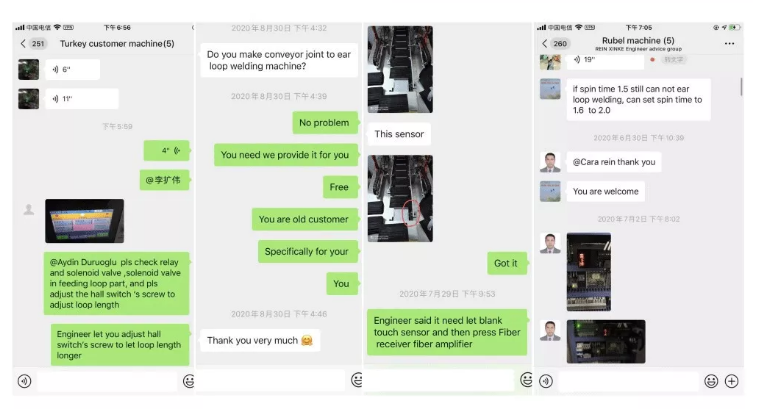

After-Sales Service
FAQ
Q: Are you a factory or trading company?
R: We are a factory.
Q:. Why I choose your company?
A: a) We are manufacturer
b) We have made machine about 20 years with strong experience and advanced technology.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service.
Q: how can we guarantee quality?
R:Always a pre-production sample before mass production;
Always final Inspection before shipment;
